Letras corpóreas | Letra armada acero inox efecto halo | Letras armadas retroiluminadas

Iluminación LED

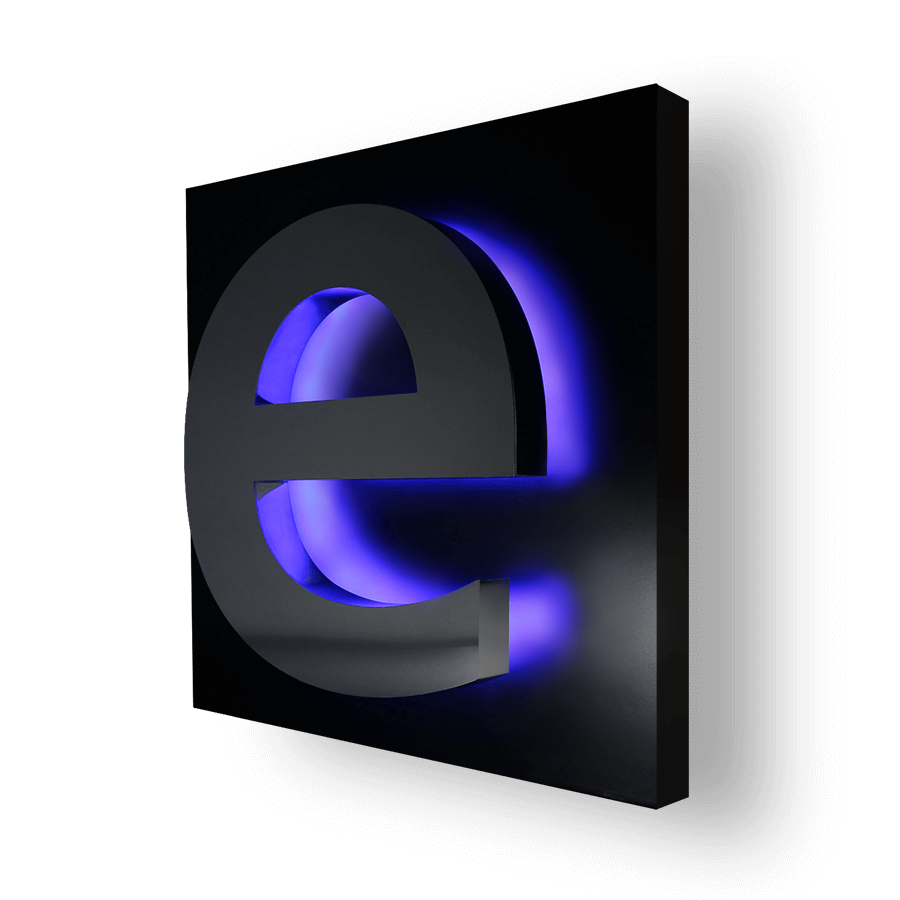

Letra armada: Acero inox efecto halo

Ilumina tu marca con elegancia inoxidable.

Maximiza el impacto visual de tu señalización con nuestras Letras Armadas de Acero Inoxidable con Efecto Halo. Este diseño combina la resistencia intachable del acero inoxidable con una iluminación sutil que enmarca cada letra, creando un atractivo visual sofisticado y duradero.

Frente

Acero inoxidable
Latón
Cobre
Acero corten

Lateral

Acero inoxidable
Latón
Cobre
Acero corten

Trasera

Acrílico Ópalo

Iluminación

Retroiluminado
Iluminación LED

Características

Materials to be used for the channel letters are Stainless Steel, Copper, Brass and (Corten) Steel. Stainless steel can have the surface finish matt, brushed or mirror. The color options for stainless steel are silver, gold, anthracite and bronze. Default used Stainless Steel is AISI 304 (1.4301). In case of usage near sea side optionally AISI 316 (1.4401) is available. Brass and Copper can be left as natural, or varnished, which is highly recommended against corrosion. Extra treatments like antique look or brush look can be made with matt or glossy varnish after treatment. Rusted look with Corten Steel or standard Steel can be caught with special treatment to surface.

Back plate is made from 3mm opal acrylic for even light diffusion.

Letters can be produced without LED illumination if desired. Letters have 12V Samsung branded IP67 LEDs and stripe LED is not used. As default channel letters are presented with IP68 Power Supply. Different brands of LED and Power Supply can be supplied upon request. Manuel dimmer or dimmable power supply are available upon request. LEDs used for channel letters are dimmable.

The installation is followed with chrome plated brass distance holders. For not illuminated channel letters Aluminum or PVC back can be requested.

Minimum beam thickness of letters can be 20mm. Minimum depth is 30mm.

Based on the request, the letters can be sent mounted on a frame (rail) or aluminum case.
